Fuel Pumps

Note: Replaces model 0580254979

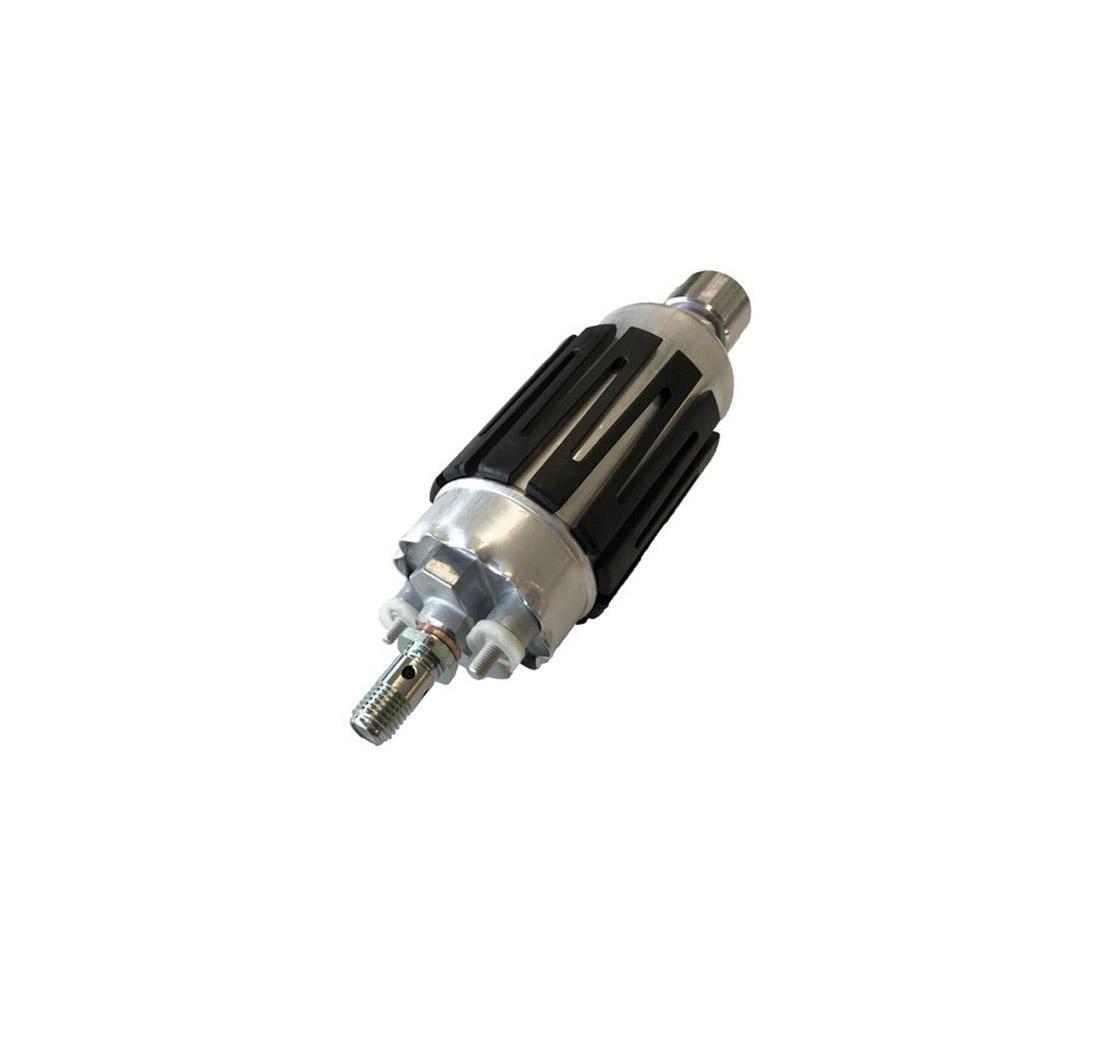

Fuel pump with flow rate range 188 to 258 l/h @ 4,3 bar
Max pressure 6.0 bar

inlet M14x1.5
outlet M10x1.0 - Female adapter M12X1.50 mm supplied

View datasheet

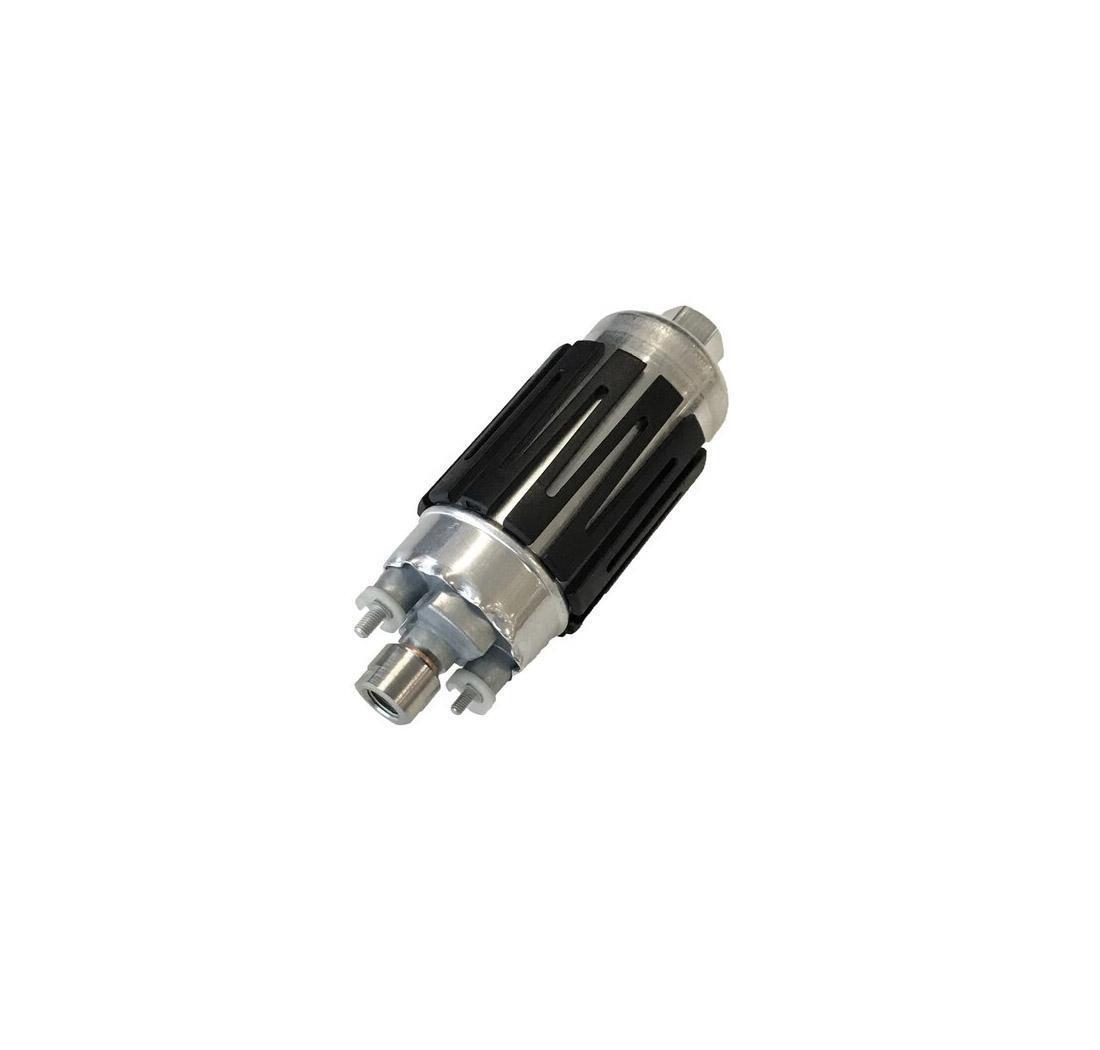

Note : Replaces the model 0580254044

Fuel pump with flow rate range:
219-270 l/h @ 5 bar (gasoline)
da 186-236 l/h @ 7 bar (diesel)

Max pressure 7,0 bar

INPUT : M14x1.50 mm - Female adapter M18X1.50 mm is supplied
OUTPUT : M10x1.00 mm - Non-return valve M12X1.50 mm is supplied

View technical details

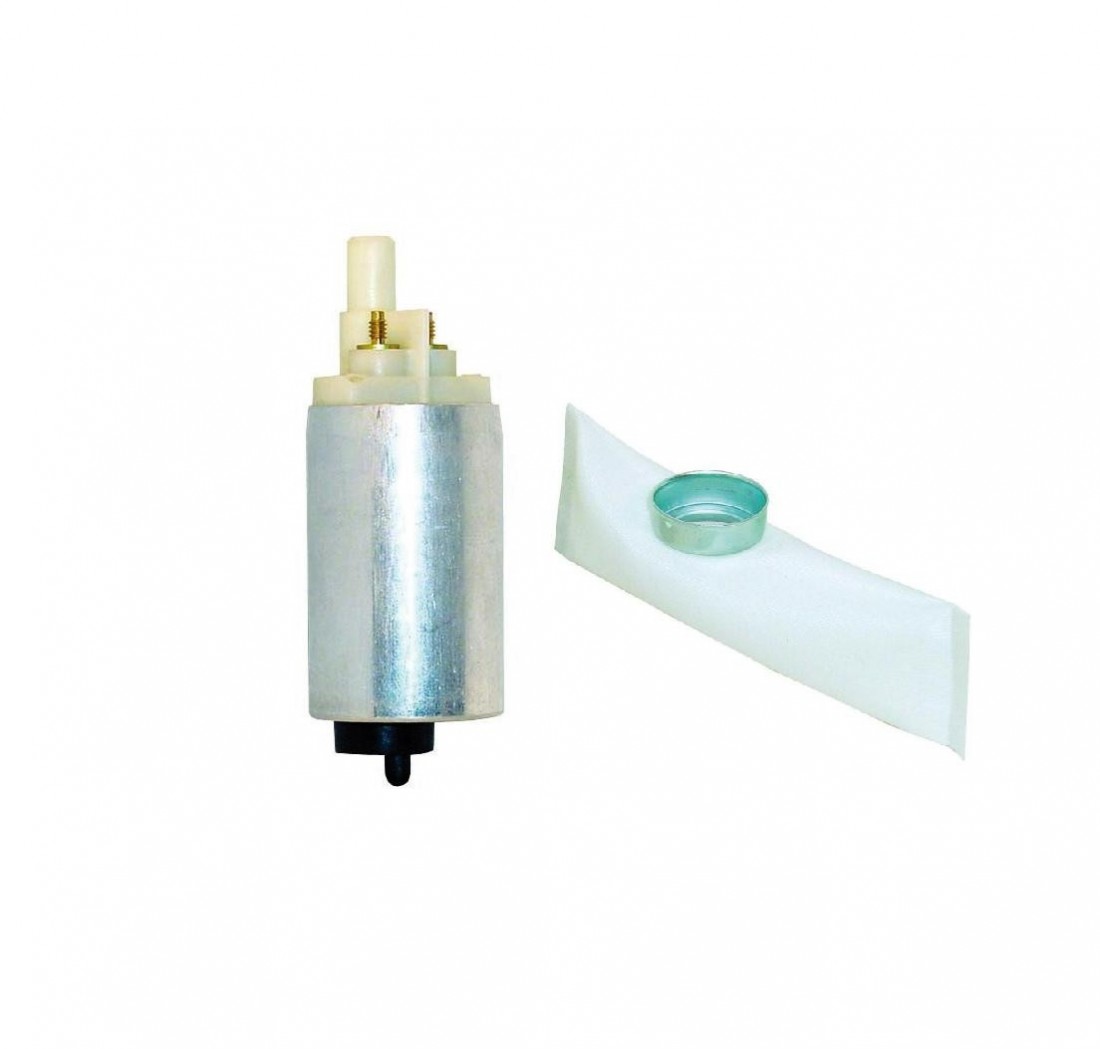

In-Tank Low Pressure Feeder Pump & Filter, Replaces AC 6441336 which in no longer in production.

Fittings In (mm): 19mm
Fittings Out (mm): 9.5 mm
Voltage DC: 12
Flow Ltr/Hr (Max): 162
Max Pressure Psi: 5.5
Length (mm): 103
Diameter (mm): 37
Weight (Kg): 0.125

Motorsport High Flow In-Tank Low Pressure Feeder Pump & Filter, Replaces AC 6441336

This Hi motorsport In-Tank Primer Fuel Pump is an major upgrade to the old AC 6441336 fuel pump and was specifically designed for supplying competition vehicles with an external swirl pot in the fuel system, flowing a massive 246 Ltr/hr free flow compaired to 162 Ltr/hr,

Fittings In (mm):- 19mm
Fittings Out (mm):- 9.5 mm
Voltage DC:-12
Max Amps:- 2.5
Flow Ltr/Hr (Max):- 246
Max Pressure Psi:- 10+
Length (mm):- 103
Diameter (mm):- 37
Weight (Kg):- 0.125

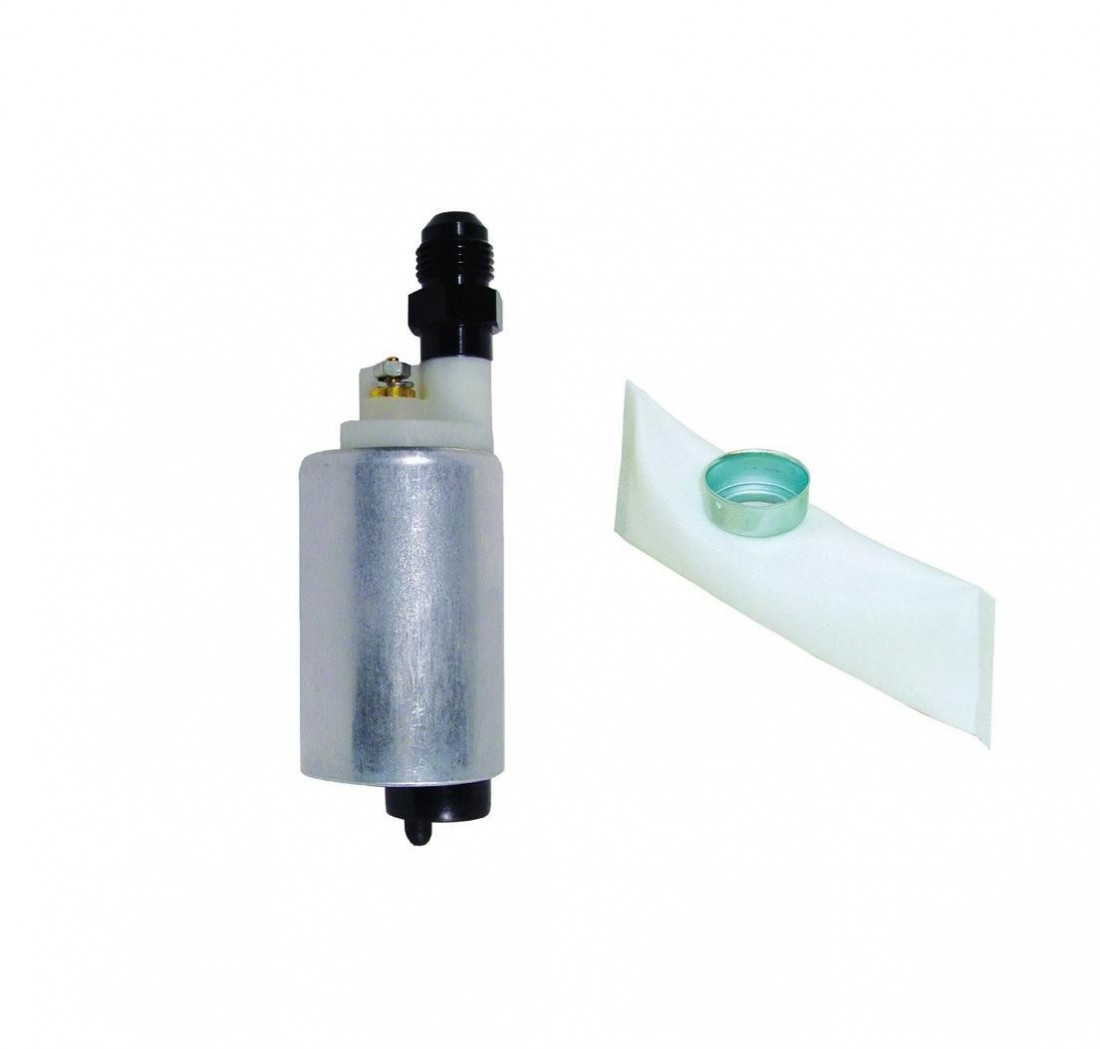

In-Tank Low Pressure Feeder Pump & Filter, Replaces AC 6441336 which in no longer in production.

Fittings In (mm): 19mm
Fittings Out (mm): JIC -6
Voltage DC:-12
Flow Ltr/Hr (Max): 162
Max Pressure Psi: 5.5
Length (mm): 103
Diameter (mm): 37
Weight (Kg): 0.125

Motorsport High Flow In-Tank Low Pressure Feeder Pump & Filter, Replaces AC 6441336

This Hi motorsport In-Tank Primer Fuel Pump is an major upgrade to the old AC 6441336 fuel pump and was specifically designed for supplying competition vehicles with an external swirl pot in the fuel system, flowing a massive 246 Ltr/hr free flow compaired to 162 Ltr/hr,

Fittings In (mm): 19mm
Fittings Out (mm): JIC -6
Voltage DC: 12
Max Amps: 2.5
Flow Ltr/Hr (Max): 246
Max Pressure Psi: 10+
Length (mm): 103
Diameter (mm): 37
Weight (Kg): 0.125

Facet Works Red Top Fuel Pump Ideal for Swirl Pot Lift Pump
Integrated 74 micron fuel filter, Voltage – 12V
Earth – Negative, Pressure (P.S.I) - 6.0 to 8.0
Flow (U.S gallons/Hour) – 40
Thread Size – ¼” NPT
Operating temperature - -60 to +43 deg C
Power Range – 200 BHP plus
Thread 1/4-18 NPT

Race proven lift pump solution.
Compact 36mm body Low Pressure lift pump, E85 safe with new upgraded internals for longer dry running capabilities.
150ltr/hr open flow
Unique serial number, fully traceable
Available with AN-6 Male (JIC-6) Outlet (11820), 3/8 Male SAE (11819), 5/16 Male SAE (11859)
See filter section for 19mm filters that are compatible with this product
direct replacement for VDO PU-AC-020

The 340 Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The 340 is a compact, lightweight pump that bolts into many existing assemblies.
This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration.
Fits most vehicles (See Application List)
Internal Check Valve
Designed for in-tank use only
Compatible with Ethanol Fuels
Can be used in Carburetted or EFI applications
Turbine pump mechanism increases durability and can be used in pulse modulated applications.

Race proven lift pump solution.
Compact 38mm body
Low Pressure lift pump, 140ltr/hr open flow
Unique serial number, fully traceable
Suitable for most popular race fuels
uitable for E15
Quiet and reliable impeller
Junior Timer 2-way Male terminal

Application Hints
Ensure fuel is always clean and filtered.
Check filter replace as required.
Compatible with all regular fuels including E15, not for use with 100% Ethanol based fuels.
Not for use with pressurised collector pot (use 11805).
