Hoses GOODRIDGE G-Line Ultra 860

The G Line Ultra hose range is the ‘go to’ hose for high burst pressure, vacuum resistance and kink resistance.

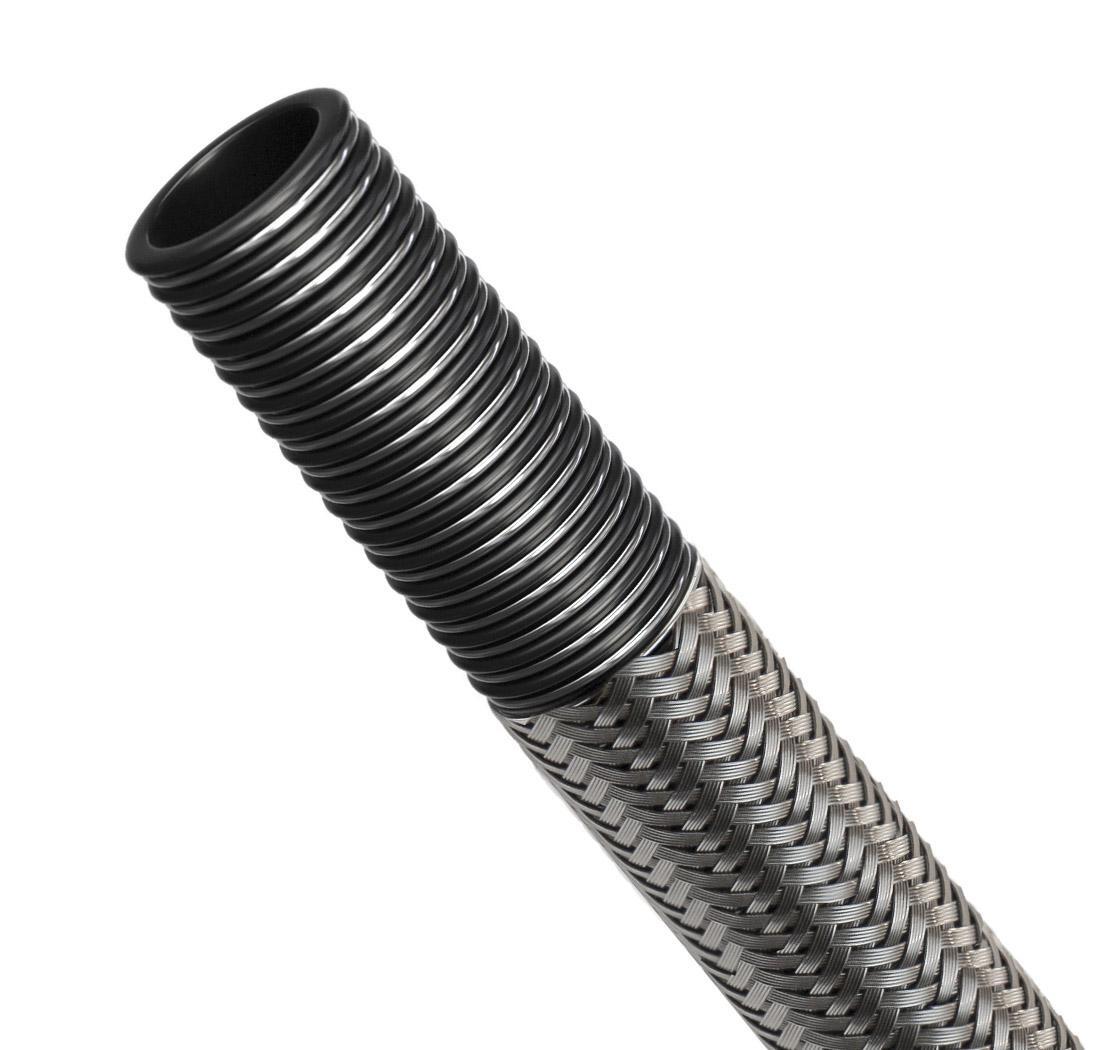

The G-Line Ultra range features a helically wound high tensile 316 stainless steel coil, seated between the external convolutions of the smooth bore PTFE hose liner. This feature increases burst pressures, vacuum resistance and kink resistance over a conventional PTFE lined smooth bore hose.

The 860 version features a stainless-steel outer braid (as opposed to the aramid fibre 960), offering the highest level of protection from abrasion, tighter bend radius and higher temp resistance.

Note: Temperature affects maximum working pressure as listed; for temps above 130° C reduce the working pressure by 0.75% for each degree above 130° C. Max 260° C.

_ _ _ _ _
Fluid applications:
Fuel, Oil, Water, Methanol & Pneumatics

Material:
Anti-static PTFE smoothbore, stainless-steel outer braid

Compatible fittings:
960 Ultra Lightweight crimp fittings
(Not compatible with any reusable fittings)

Notes:
Collars must be purchased separately.
