AP RACING CP5596

Pedal Boxes AP RACING

This unique pull type design allows the load through the cylinders to remain straight during operation, which eliminates side loads that you see in a push type cylinder, thus making CP5596 the most efficient fixed floor mounted pedal box on the market.
The cylinders are mounted under the driver’s feet for optimum space utilisation and access.
Minimum hysteresis and balance variation are assured by the use of needle roller bearings in the centre trunnion.
CP5596 supercedes but does not replace CP5516 assemblies, but offers improved strength, and installation qualities.

RATIOS: - Brake pedal = 4.10:1 to 5.00:1 - Clutch pedal = 4.55:1.
WEIGHT: 3.9kg, approx - without cylinders

FEATURES:
- Lightweight aluminium machined from solid billet base.
- Pedals are pivoted by ball bearings to increase smoothness.
- Adjustable foot pads for extra driver comfort.
- Adjustable clutch and throttle pedal stops.
- Dual mountings fro throttle potentionmeters. Inboard mounting and sensor available in sperate kit - CP5596-TS.
- All threads are metric
- Adjustable cable CP2905-18 included with assembly.

Note: Pedal boxes are not supplied with master cylinders

3
Floor
With outboard throttle sensor
AP RACING

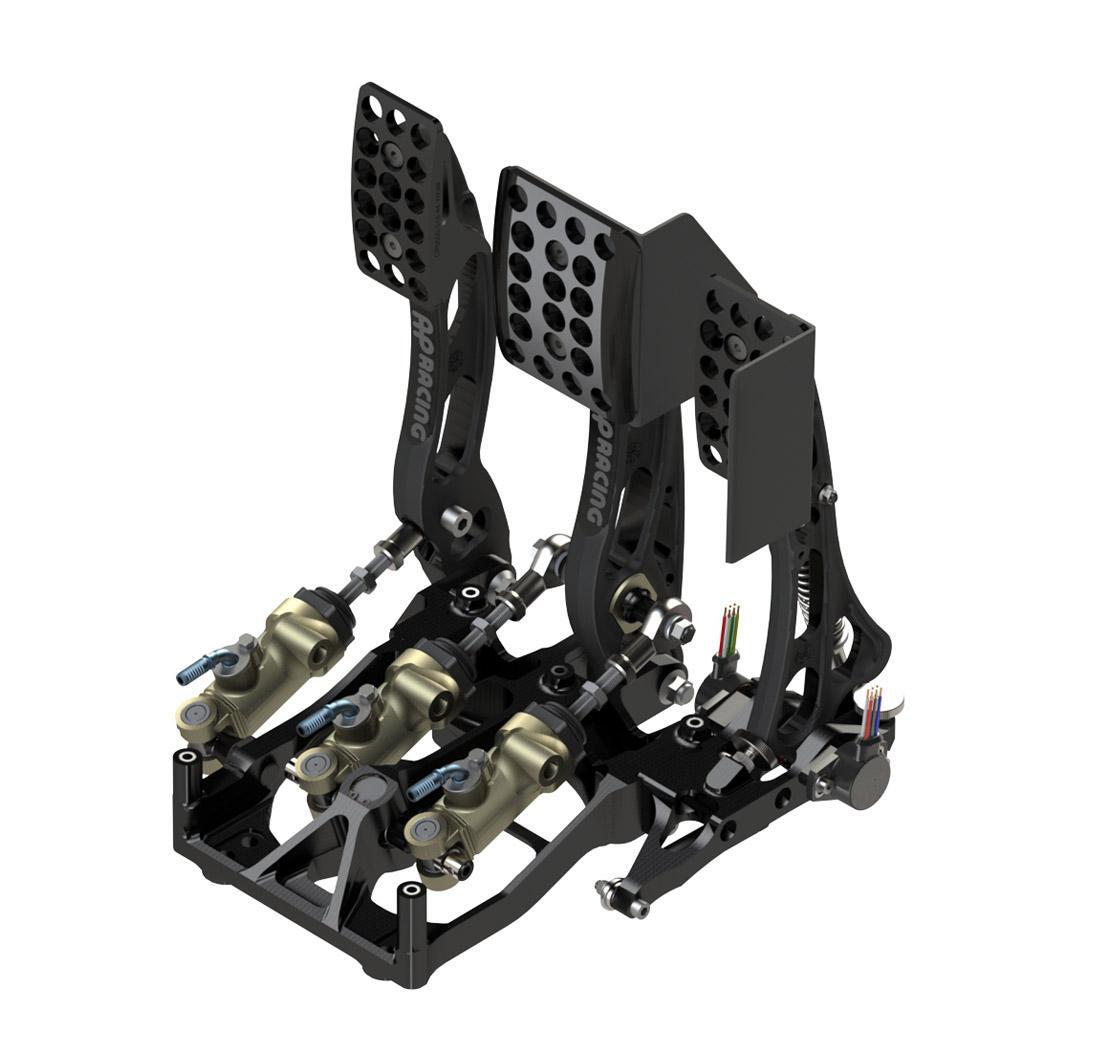

3 pedals floor mount Pedal box with outboard throttle sensor
COD: CP5596-CBT-TS
Available on request
