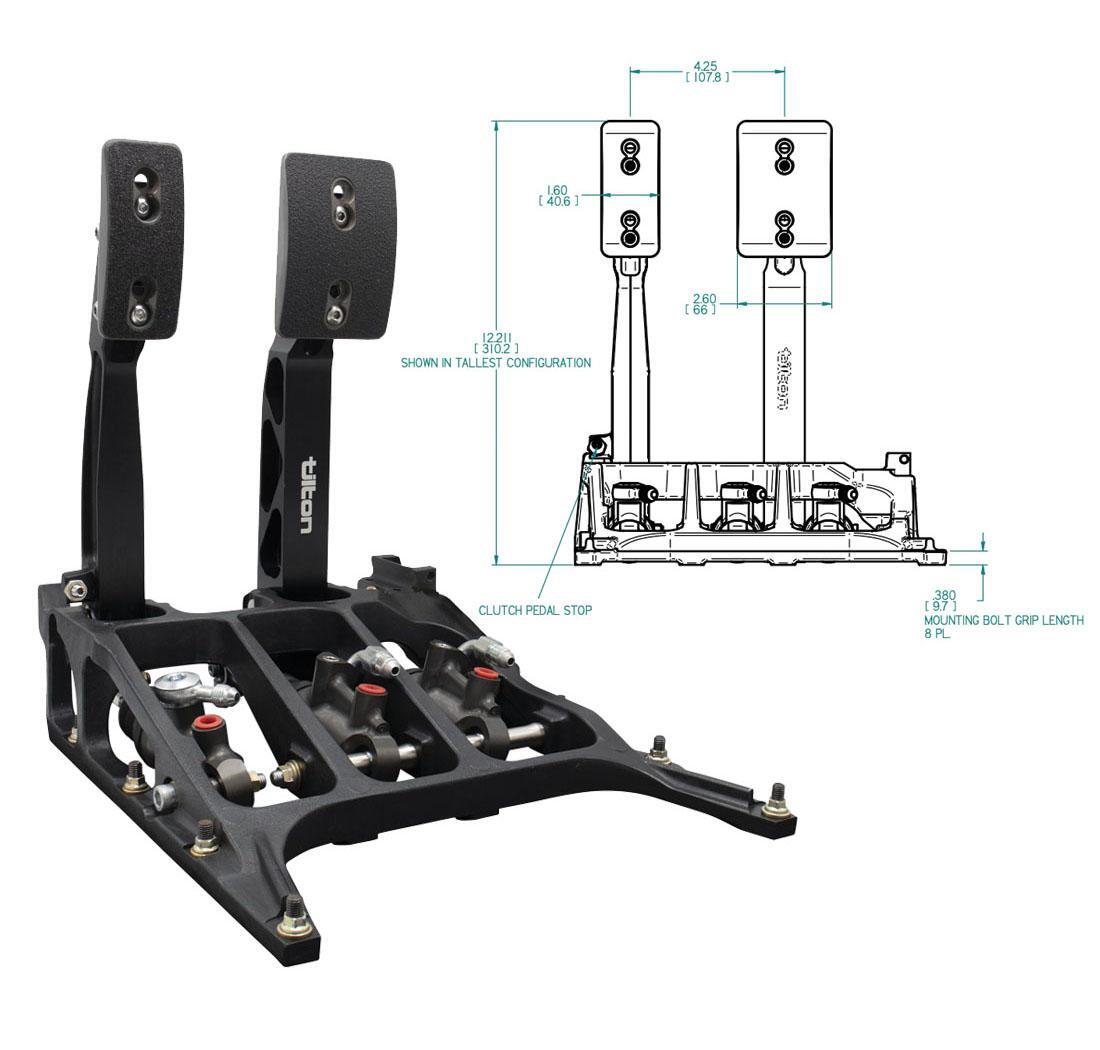

TILTON 72-856/857-S

- Ultra-efficient 7/16”-20 trunnion type balance bar virtually eliminates brake migration through braking zone
- Billet aluminum brake pedal with ball bearings in pivot
- Forged aluminum throttle and clutch pedal with oil-impregnated bronze bushing in pivot
- Lightweight and high-strength aluminum frame
- Adjustable pedal ratio (4.8:1 to 6.1:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
- Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
- Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
 Weighs 7.6 lbs (3 pedal) or 6.6 lbs (2 pedal) (does not include master cylinders)

Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 78-Series master cylinders

Warning: A Remote Brake Bias Adjuster must be used with 800/850-Series Pedal Assemblies to prevent the balance bar from rotating on its own.
